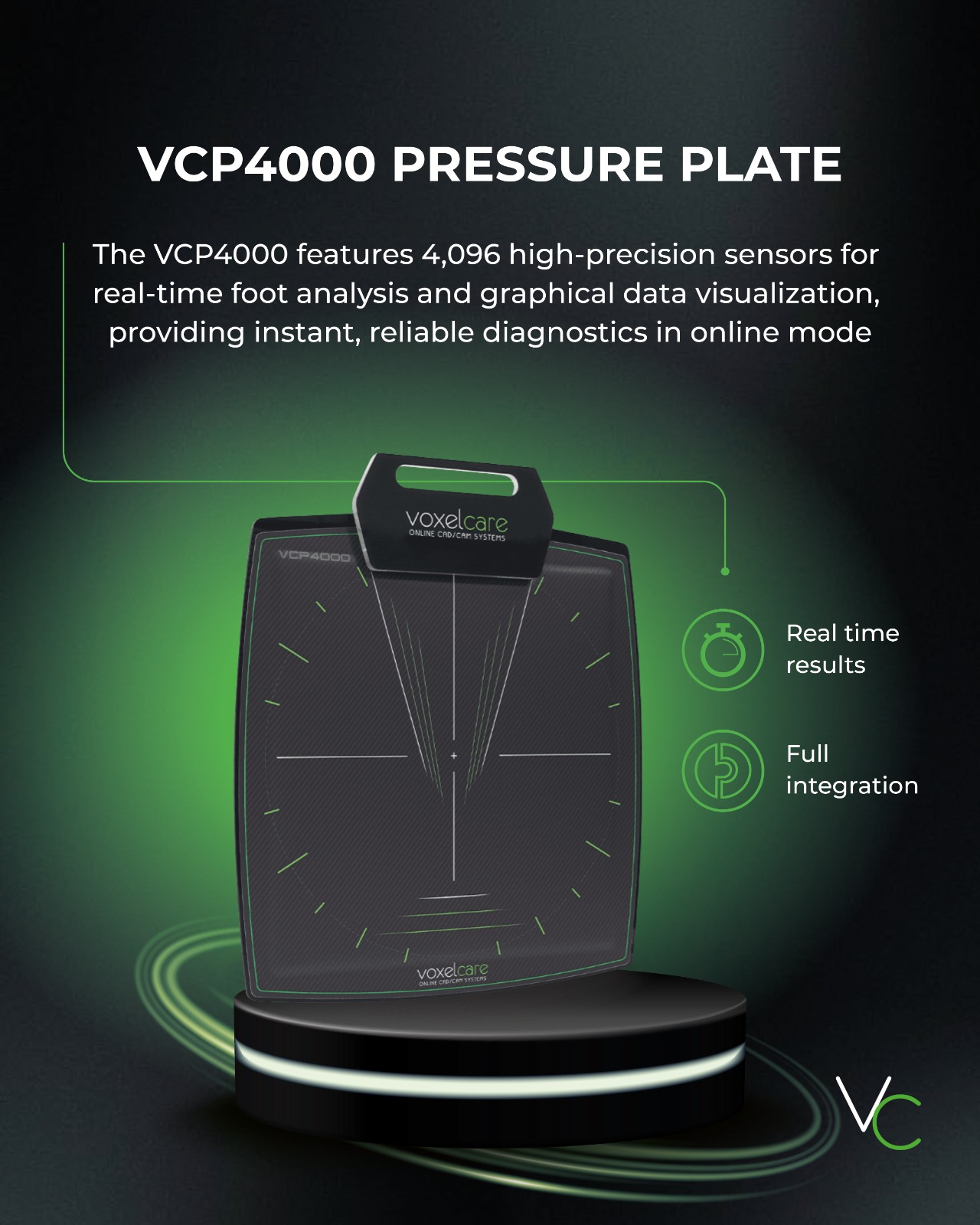

The VCP4000 Pressure Plate features 4096 high-precision pressure sensors for comprehensive foot analysis. This advanced system provides real-time data visualization, with pressure values instantly displayed on-screen in a detailed graphical format. The plate's robust sensor configuration ensures accurate and reliable measurements for various footcare applications. Upon activating the online mode, users can immediately access and interpret the collected pressure data, enabling efficient analysis and diagnosis.
Foot pressure display
The pressure distribution of a static measurement or dynamic steps can be evaluated using two and three-dimensional display. The user interface for the pressure measuring platform is easy to use, intuitive and graphically the best in its field.
* Sensors: Resistive type, 7.8x 7.8 mm, 4096 (64 x 64)
* Pressure range:100 N/cm2
* Evaluation: The recorded pressure load can be evaluated using the display of maximum or average values under the foot. Additionally the movement of the centre of pressure can be evaluated
* Persistent data: Every recording is stored on hard disk for each patient so that evaluation at a later time is always possible
Evaluation data
The recorded pressure load can be evaluated in different modes; using the display of maximum or average foot pressure values as well as evaluating the movement of the centre of pressure.
